RP30X
Rugged Android Handheld

Enterprise-grade handheld with integrated 2D scanning and NFC — built for field operations, logistics, and mission‑critical workflows.

Request a Demo View Specs

IP65 • 1.5m drop • 5000mAh • Wi‑Fi ac • Bluetooth 5.0

Back to Rugged Devices

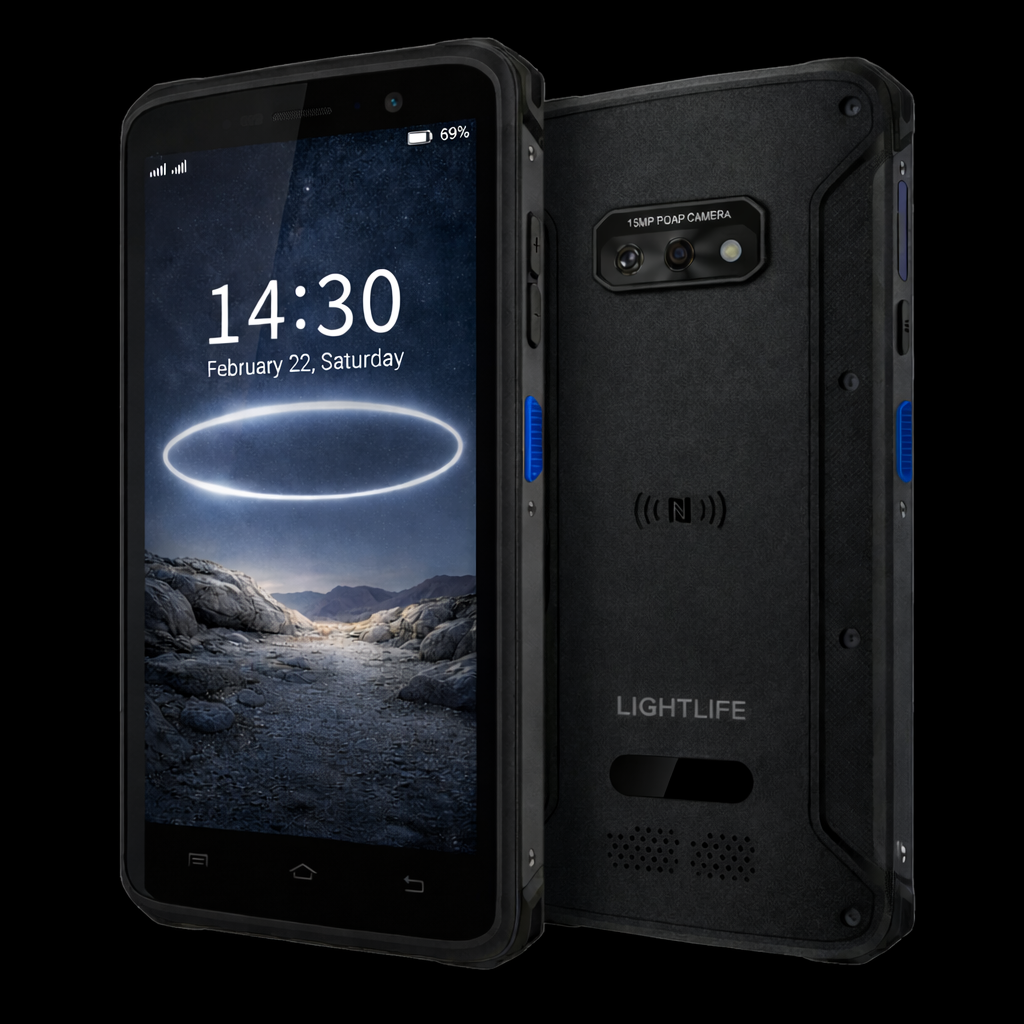

RP30X rugged handheld device

Key Features

IP65

Rugged & Reliable

IP65 protection and 1.5 m drop rating for demanding environments.

Integrated 2D Scanning

Supports Zebra SE6100‑2D or Honeywell N6703 scan engines.

NFC

NFC Ready

13.56 MHz • ISO14443A/B • ≤ 2 cm reading distance.

Glove & Wet‑Hand Touch

5.45" HD+ LTPS display with 10‑point multi‑touch.

5000mAh

All‑Day Power

5000 mAh battery • 18 W fast charging (9V/2A).

LTE • Wi‑Fi ac

Enterprise Connectivity

4G LTE + VoLTE, Wi‑Fi a/b/g/n/ac, Bluetooth 5.0, GNSS (GPS/GLONASS/BDS).

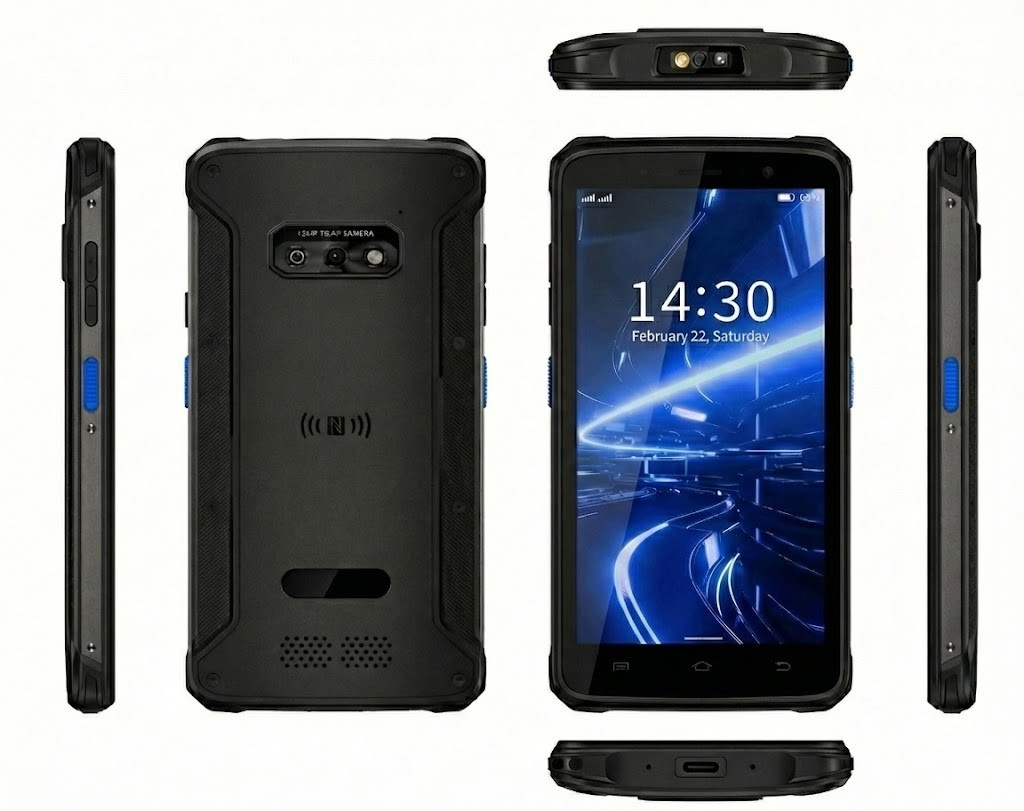

RP30X specifications view

Key Specs

Core Platform / Functions
Operating SystemAndroid 9.0
ChipsetMediaTek MT6762V/CA
CPUOcta‑core, up to 2.0GHz
Development ToolsAndroid SDK
Programming LanguageJava
Display
Size / Type5.45‑inch LTPS
Resolution720 × 1440 (HD+), 18:9
Touch PanelGFF, 10‑point multi‑touch
Touch FeaturesGlove mode, Wet‑hand operation
Touch GlassTempered glass
Memory
RAM4GB
ROM64GB
ExpansionMicro SD card, up to 64GB
Camera
Rear Camera13MP, PDAF, with LED flash
Front Camera5MP, Fixed Focus
Connectivity
Cellular NetworkGSM / CDMA / WCDMA / TD‑SCDMA / FDD‑LTE / TDD‑LTE
LTE BandsB1 / B3 / B8 / B34 / B38 / B39 / B40 / B41
Carrier AggregationB3+B3, B1+B3 (2CA)
Wi‑Fi802.11 a/b/g/n/ac (2.4GHz & 5GHz)
BluetoothBluetooth 5.0
GNSSGPS / AGPS / GLONASS / BDS
VoLTESupported
Audio & Input
SpeakerDual speaker (12 × 17 × 2.5 mm)
MicrophoneBuilt‑in
PromptVibration / LED / Audio
Vibration MotorBuilt‑in
Physical KeysPower key, Volume + / −
Scan Keys2 dedicated scan keys
Virtual KeysMenu, Home, Back
Sensors
SensorsG‑sensor, Proximity, Light, Gyroscope, Geomagnetic
Barcode Scanning (AIDC)
Scan EngineZebra SE6100‑2D / Honeywell N6703
Optical Resolution1280 × 800 / 844 × 640
Scan Precision≥ 3 mil (Code 39 / Code 128)
Scan AnglesTilt 360°, Pitch ±45°, Skew ±60°
Laser SafetyClass II
NFC
Frequency13.56 MHz
ProtocolISO14443A / ISO14443B
Reading Distance≤ 2 cm
Special FeaturesContactless CPU card, 2nd‑generation ID card
Battery
Capacity5000mAh built‑in Li‑polymer battery
Fast Charging9V / 2A (18W)
Discharge Temperature−20°C ~ +60°C
Ports
USBType‑C waterproof port
OTGSupported
Physical Characteristics
Dimensions158 × 76 × 13.7 mm
Weight227 g
Rugged & Environmental
Operating Temperature−20°C ~ +55°C
Storage Temperature−40°C ~ +60°C
Humidity0 ~ 95% (non‑condensing)
Drop Specification1.5 m drop on concrete
IP RatingIP65
ESD Protection±12 kV air, ±8 kV contact
In‑box Accessories
Standard AccessoriesPower adapter, USB cable, tempered glass screen protector
